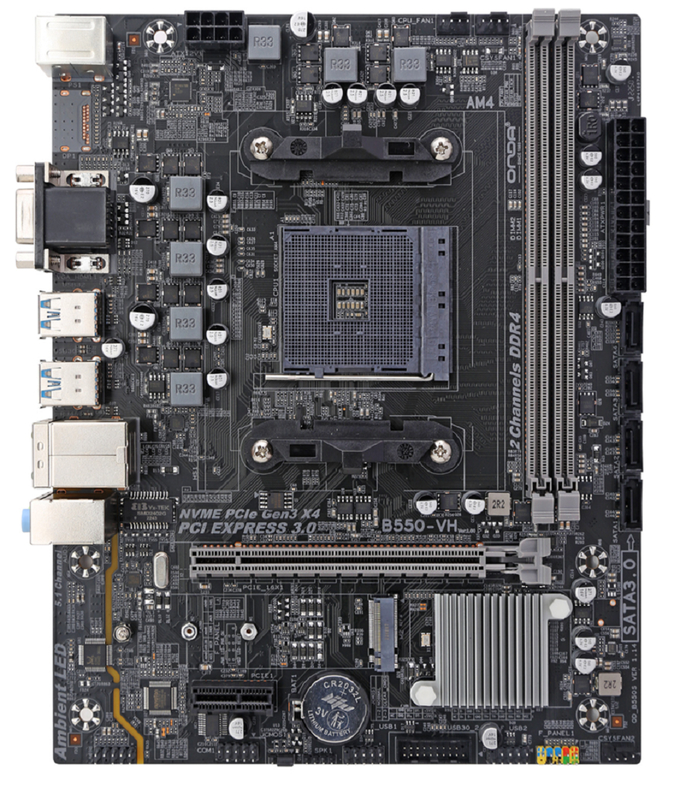

ETEK AM4 Socket Micro-ATX Motherboard For AMD Ryzen CPUs Dual-channel DDR4 3600MHz PCIe 4.0*16 Slot

ETEK M-ATX Motherboard

ETEK AM4 socket Micro-ATX motherboard for AMD Ryzen CPUs, dual-channel DDR4 3600MHz, PCIe 4.0×16 slot.

Mainboard,Desktop board,PC motherboard,PC mainboard

Feature

Photos

Specification

1.Chipset :AMD B550/A520/X570Chipset

2.CPU platform:AMD Socket AM4,support AMD Ryzen series CPU

3.Memory Support:Support 2 DDR4 2133/2400/2800/3000/3200/3600MHz ,up to 64GB

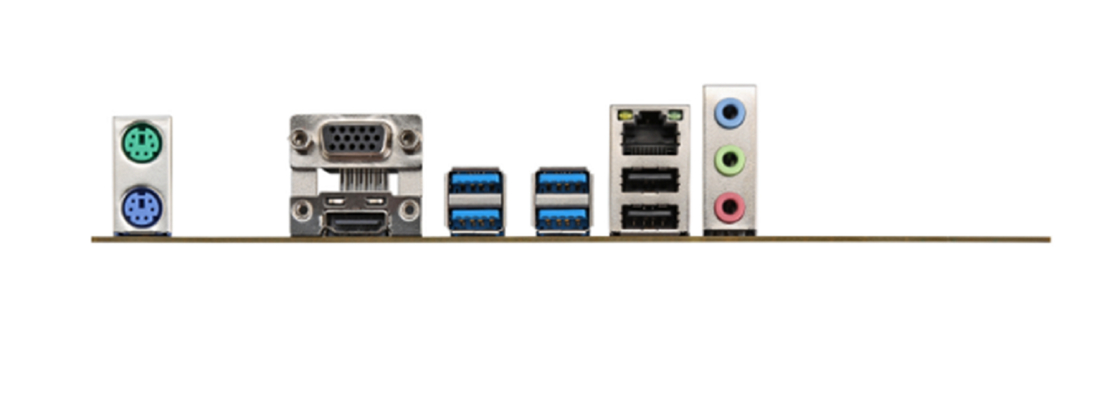

4.Back I/O interface:1xPS/2 keyboard port,1xPS/2 mouse port,1x HDMI port,1x VGA port,4xUSB 3.0, 2xUSB 2.0,1x RJ45 port,1x 3-in-1 Audio port(line in/line out/MIC in)

5.Internal I/O Ports:1x 24-pin ATX power connector,1x8-pin ATX 12V power connector,2x USB connector, can support 4*USB 2.0 ,1*USB connector, can support 2*USB 3.0 ,1x F-AUDIO connector,1x F-PANEL connector,1x F-SPEAKER connector,4×SATA3.0 6Gb/s(A520 2×SATA3.0 6Gb/s ),1xCOM port1xCOM port,3x FAN connector

6.Integrated Sound:3 x 3.5mm ,6 channel HD Audio 5.1

7.Integrated lan:Realtek 100/1000 Mbps LAN onboardRealtek 100/1000 Mbps LAN onboard

8.Expansion port:1 x PCI Express 4.0 x16,1 x PCI Express x1,1xM.2 Slot (supports SATA SSD&PCI-E NVME SSD)

9.Power:24+8

10.Other interface :1 x RJ45 1 x PS/2

11.Accessories:plate×1 SATA cable ×1 manual book×1 CD driver×1

12.FORM ACTOR:M-ATX 180mm×225mm

13.OPTIONALS:customized retail box optional ,free silk print , bios logo

Questions and Answers

Q1: What about the minimum purchase quantity on factory price?

A: Minimum purchase quantity is 200pcs/model. If you buy more qnty or more styles to fit 1 container to save freight charge, pls check with us.
