ETEK M-ATX Motherboard
ETEK H610 Micro-ATX motherboard for LGA1700 CPUs,DDR4 Dual-Channel, PCIe 4.0 x16 Slot, DP+HDMI+VGA (Optional) Outputs, 2×USB 2.0 + 2×USB 3.0 Ports.
Mainboard,Desktop board,PC motherboard,DDR4 motherboard,PC mainboard
Feature
•Motherboard supports Intel® LGA1700 socket for full-performance 12/13/14th Gen Core™ i9/i7/i5/i3 CPUs.
•Motherboard equips dual-channel DDR4 slots (2133-3200MHz, up to 64GB).
•Motherboard includes 3×SATA ports + 1×M.2 slot (PCIe 3.0×4 NVMe/SATA).
•Motherboard offers PCIe 4.0×16, PCIe 3.0×1, and Realtek® GbE LAN.
•Motherboard features DP+VGA(optional)+HDMI outputs and 2×USB2.0+2×USB3.0 ports.
•Motherboard has M.2 WiFi slot, includes I/O shield/SATA cable/driver CD.

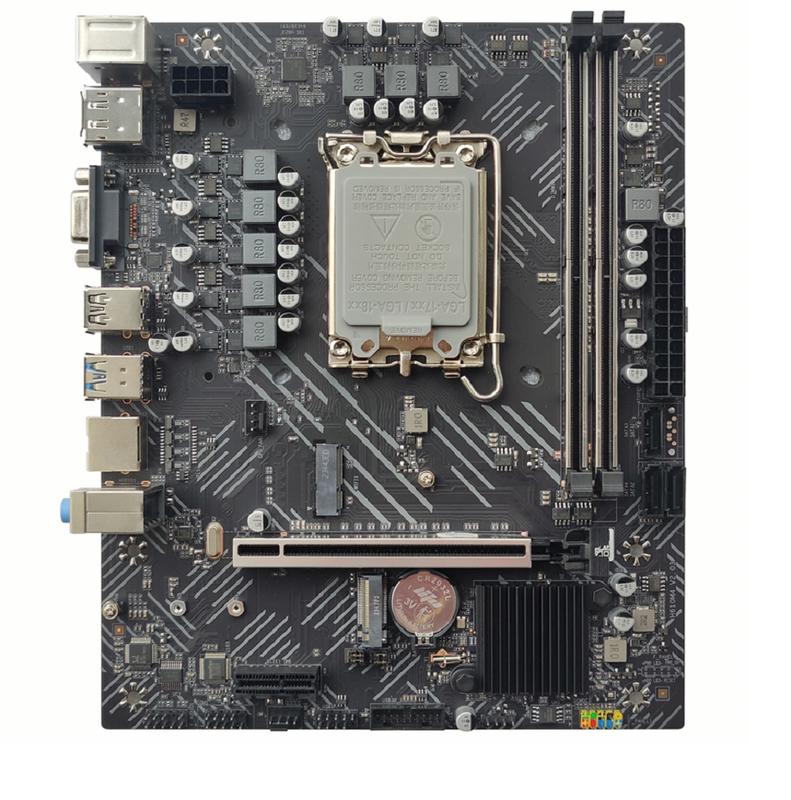

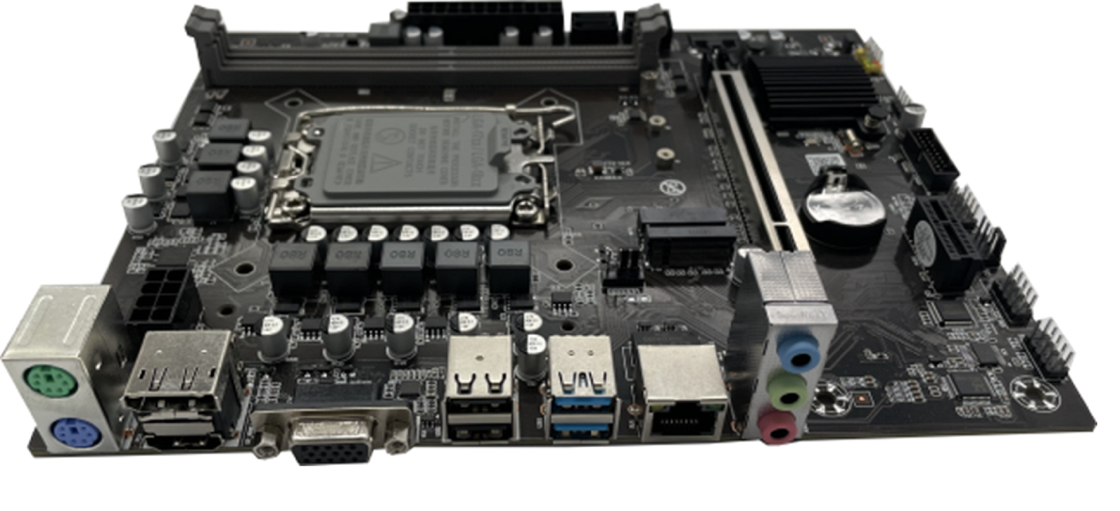

Photos
Specification
1.Processor:Supports Intel® Socket LGA1700 12/13/14th Gen Core™i9/ i7/ i5/ i3 processors with full performance
2.Chipset:Intel® H610
3.Memory Suppor:Support Dual channel DDR4 2133/2400/2800/3200 MEMORY (32GB*2=64GB Max)
4.LAN:Spport Realtek® 10/100/1000 Mbps
5.Audio:Chip integrated by Realtek® ALC897
6.Slot:1 x PCI Express 4.0x16 Slot,1 x PCI Express 3.0 x1 Slot
7.Storage:3 x SATA port,1.M.2 Port (PCI-E 3.0 X4 NVME SSD & SATA3.0 SSD )
8.Internal I/O Ports:1xM.2 for WIFI,1 x 24-pin ATX Power Connetor,1 x 8-pin ATX Power Connetor,1 x USB connector support additional 2 USB2.0 ports,1 x USB connector support additional 2 USB3.0 ports,1 x COM connector,1 x Front panel audio connector,1 x System Panel connector
9.Back I/O Ports:1 x PS/2 keyboard,1X DP,1 x VGA(DP OPTIONAL),1 x HDMI,2 x USB 2.0,2 x USB 3.0 ,1 x LAN(RJ45) Port,3 x Audio jack
10.BIOS:EFI BIOS
11.Form Factor:Micro ATX - ,220x180mm
12.Accessories:1 x Driver CD,1 x User Manual,1 x I/O Backboard,1 x SATA cable
Questions and Answers
Q1: What about the minimum purchase quantity on factory price?
A: Minimum purchase quantity is 200pcs/model. If you buy more qnty or more styles to fit 1 container to save freight charge, pls check with us.
