| Place of Origin: | China |
|---|---|
| Brand Name: | Artshow |
| Certification: | CE/ROHS |
| Model Number: | WM-120-Colorful |
| Minimum Order Quantity: | 1000pcs |
| Packaging Details: | Color Box |
| Delivery Time: | 25-30 Working Days |
| Payment Terms: | L/C, T/T |
| Pump Head Size: | L65*W65*H60 Mm | Radiator Size: | 120*157*27 Mm |
|---|---|---|---|
| LED SPEC: | LED 3528 | LED QTY: | 12PCS |
| Net Weight: | 1.1kg | ||
| Highlight: | 120mm Computer Case Coolers,Leakproof Computer Case Coolers,RGB 120mm liquid cooler |
||

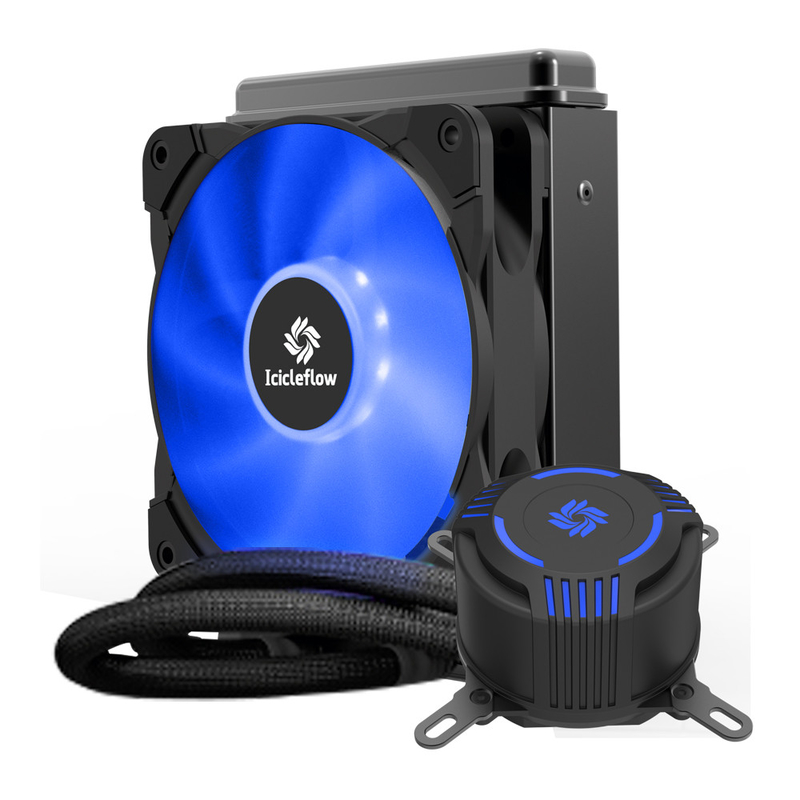

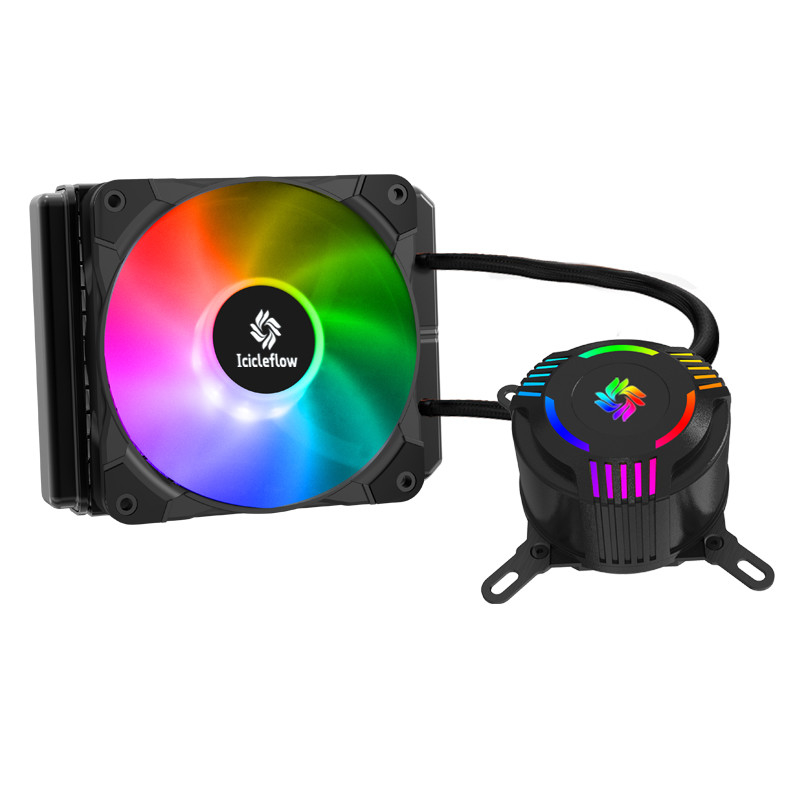

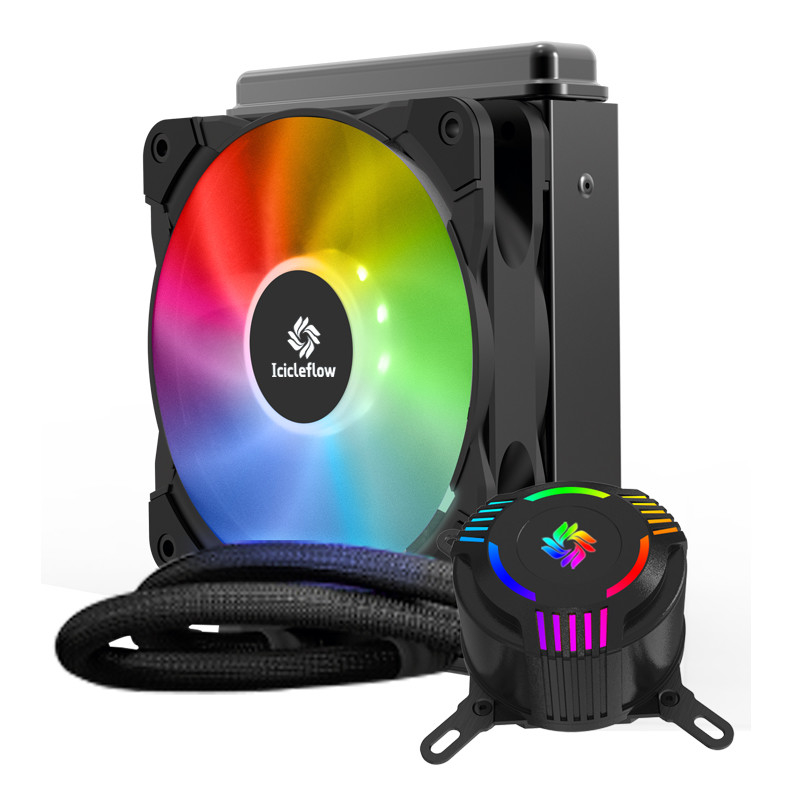

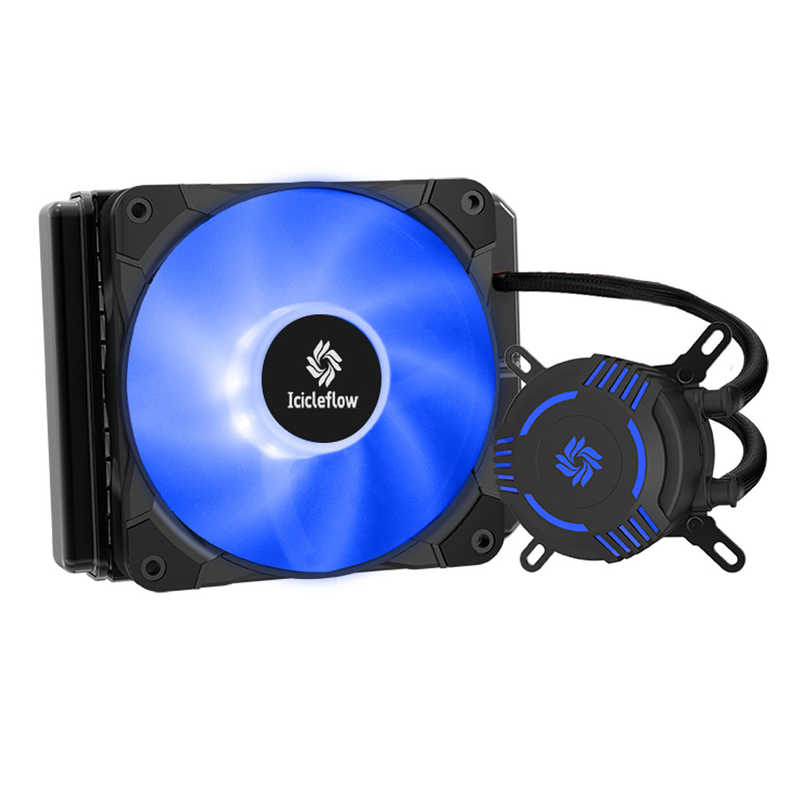

Artshow 120mm CPU Cooler 120 Water Cooled Radiator Leakproof High Flow Pump RGB Liquid Cooling System for AMD/Intel CPU
Product Name:120 RGB Water cooled radiator
Product Picture:
Product Feature:
1.Skive copper base for easy heat conduction
2.Three-phase brushless sensorless motor and driver
3.Disconnect-type impeller design
4.High reliability FEP tubing
5.Low noise design
6.Low rate of evaporation design
7.High heat resistance choice (PPS+40%GF housing)
8.No-rubber and low flow resistance manifold design
9.Customized logo
10.Colorful LED light circle
11.12027 radiator, more efficient heat dissipation
Specification or Parameters
| Item | Specification or Parameters | ||
| Pump head size | L65*W65*H60 mm | ||
| Radiator size | 120*157*27 mm | ||
| FEP Tubing spec | FEP, L=350 mm | ||
| Heat contacting material | 99.9% copper | ||
| Pump bearing | Graphite bearing | ||
| Pump shaft | Ceramics shaft | ||
| Housing | PPS+40%GF | ||
| Impeller poles | 10 Poles | ||
| Stator slots | 12 slots | ||
| Starting voltage | ＞DC 6V | ||
| Motor type | Three phase brushless sensorless motor | ||
| Rated voltage | DC 12V | ||
| Rated power | 2.8 | ||
| T-rising | 9.7K-11.0K(120W) | only for reference | |
| Acoustical noise | ＜30dB | ||
| LED SPEC | LED 3528 | ||
| LED QTY | 12PCS | ||
| Working temperature | -10~40°C | ||
| Storage temperature | -20~60°C | ||
| Rated Current | 0.23A±10% MAX | ||
| Speed | 2650±10% RPM | ||
| Pump power wire | +UL1007 24#( 24# black cable),outside length 300mm; UL 1007, 24 AWG, black, bonded, L=300mm | ||
| Fan Specification | |||
| Outline | 120*120*25mm | ||
| Rated Voltage | DC12V | ||
| Operating Voltage Range | 8~13.2V | ||
| Auto start | YES | a. Rated Voltage | |
| Tachometer Output | YES | b. 25℃,65% RH | |
| PWM | YES | ||
| Rated Current | 0% 0.035A±10% | ||
| 100% 0.24A±10% | |||
| Locked Current | Brake protection | ||
| Power Consumption | 2.24W+10%MAX | a. 25℃,65% RH | |
| b. Free Air | |||
| Speed 100% | 0%: 800±80R.P.M | c. Rated Voltage | |
| 100%:2200±220R.P.M | |||
| Max. Airflow | 65.5CFM(ft3/min) | a. Rated Voltage | |
| b. AMCA(Standard) | |||
| c. Rated Current | |||
| Max. Static Pressure | 2.34mm-H2O | ||
| Noise Level | 31.1dB(A) | a. CNS 8753 (Standard) | |
| b. ISO 3744 (Test Condition) | |||
| Life | 30,000/hrs 25℃ | MTBF(Mean Time to Failure) | |
| Conf. Level 90% | |||
| No. of Blade | 9 Blades | ||
| Rotating orientation | Anticlockwise | ||
| Suitable socket | |||
| Intel socket | LGA775/115X/1366/2011/2066 (Core i3/i5/i7/i9 CPU) | ||
| AMD socket | FM1/FM2/AM2/AM2+/AM3/AM3+/AM4 CPU | ||
| Accessories | |||
| Part Name | Spec | QTY | |
| Cooling fan | 12025 ARGB | 1 | |
| Back plate | Metal back plate suitable Intel and AMD | 1 | |
| Nut of back plate | Nut of back plate | 4 | |
| INTEL bracket | Left and right | 2 | |
| AMD bracket | Left and right | 2 | |
| Thermal grease | High conduct thermal grease(0.5g) | 1 | |
| Spring nut | Spring nut | 4 | |
| Plastic gasket | Plastic gasket | 4 | |
| Metal gasket | Metal gasket | 4 | |
| 2011 two side thread bolt | LGA 2011 two side thread bolt | 4 | |
| Long bolt | Long bolt with separate plastic pole | 4 | |
| Fan screw | Fan screw | 4 | |
| Radiator screw | Radiator screw | 4 | |
| Transfer cable | Fan wire one to two | 1 | |
| Unser manual | yes | 1 | |
| Packing description | |||
| Net weight | 1.1kg | ||
| Gross weight | 1.6KG | ||
| Retail box size | L240*W200*H150 MM | ||
| Packing type | Colorbox + Carton | ||
| Carton size(8sets) | L505*W425*H320 MM | ||
| Unit/carton | 8 | ||
| Pallet size(mm) | 1219MM X 1016MM | ||
| Carton/ pallet | 24 | ||
| Warranty | |||
| Warranty | 1 year | ||
